Basic Info
  • Factory Location: NO.50, Wenjin Road,High-Tech Development Zone,Wenzhou,China

    Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Asia

  • Monthly Production Capacity: 10set/month

  • Delivery Lead Time: one month

    Sample Provided: no

    Payment Terms: FOB

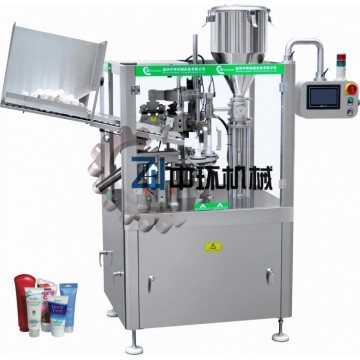

    ZHY-60YP  Plastic Tube Filling and Sealing Machine



    Compact design and auto tube feed. Driving part fully-closed.

    Tube washing and feeding marking identification, filling, folding, sealing, code printing and finished product output all conducted by a fully auto control system.

    Tube washing and feeding conducted pneumatically, accurate and reliable.

    Key Features



    ◆Compact Design

    ◆Driving Parts Fully-closed

    ◆Pneumatic Tube Washing & Feeding

    ◆Intelligent Temperature Control and Cooling System

    ◆Easy to Operate and Adjust

    ◆316L Stainless Steel Contact Parts to meet GMP Standard

    ◆Safety Interlock Shutdown when Door is Open

    ◆Overload Protection Provided

    ◆Automated Working process from Tube Loading to Finished Products Output

    ◆Automatic Orientation Effected by Photoelectric Induction



    Optional Devices

    ◆Chiller

    ◆Date Coding Embossing

    ◆Automatic Tube Feeding Magazine

    ◆Change Parts



    Technical Parameters

    Filling volume: 1-250ml/unit (Adjustable)

    Filling accuracy: ≦±1﹪

    Capacity: 2400-3000unit/hour, Adjustable

    Tube diameter: Φ10-50 mm

    Tube length: 50-200mm

    Hopper volume: 40L

    Power: 380V/220V (Optional)

    Air pressure: 0.4-0.6 MPa

    Equipped motor: 1.1KW

    Machine power: 5kw

    Inner wind motor: 0.37kw

    Convulsions motor: 0.37kw

    Dimension: 1950×760×1850(mm)

    Weight: About 950 Kg
