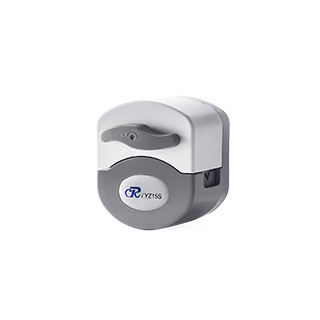

YZ15S series

YZ15S series easy-to-install peristaltic pump head, compact and beautiful, compact structure design, stable transmission performance, easy tube replacement, can be matched with various types of hoses and various motors, supports OEM customization, single and dual channels are optional, and easily meets diverse needs Accurate and personalized application.

　　YZ15S-1 flow range: 0.004-380 ml/min

　　YZ15S-2 flow range: 0.004-185 ml/min/channel

　　1. Small size, compact structure and light operation.

　　2. Knob-type switch, eccentric axis design, easy opening and closing, and quick tube installation.

　　3. Self-adapt to pipe clamps, slow down hose wear, longer life span, and better adaptability.

　　4, PET roller material, heat resistance, abrasion resistance, stability performance.

Basic parameters:


Model YZ15S-1 YZ15S-2
Speed range 0.1-300rpm 0.1-300rpm
Flow rate range 0.004-380ml/min 0.004-185ml/min/channel
Number of channels 1 2
Number of rollers 3 3
Applicable hose 13#, 14#, 19#, 16#, 25# 13#, 14#, 19#, 16#
Roller material PET
Available with motor 57 stepper motor/42 stepper motor, DC motor, AC synchronous motor
