Main Sales Markets: North America,Central/South America,Eastern Europe,Asia,Middle East,Africa
Sample Provided: no
Payment Terms: T/T

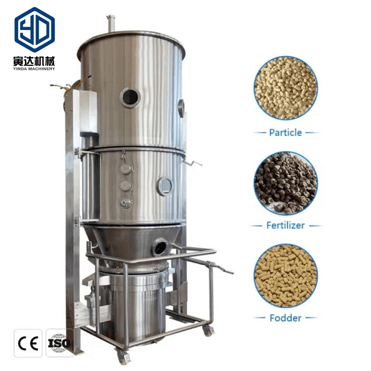

Yinda fluid bed dryer is one of the common processing equipment used in the pharmaceutical industry. It is a multi-purpose equipment as mixing, granulation and drying are all performed in the same equipment. The equipment operates in a bubble bed regime.
The material powder particles are fluidized in a circular shape in the fluidized bed and receive preheating and mixing by purified heated air, which atomizes the binder solution and sprays it in, causing several particles to gather into agglomerates containing binder. Due to the continuous drying of the material by the hot air, the water in the agglomerates evaporates and the binder solidifies. This process is repeated until uniform, microporous spherical particles are formed.
Technical data
Item
MODEL
YDLZ-3
YDLZ-5
YDLZ-30
YDLZ-60
YDLZ-120
YDLZ-200
YDLZ-300
YDLZ-500
Container
Diameter(mm)
Volume (L)
300
12
400
22
700
100
1000
220
1200
420
1400
420
1600
1000
1800
1500
Capacity
Min.(kg/batch)
Max.(kg/batch)
1.6
4
4
6
15
36
30
72
80
140
100
240
150
360
250
600
Consume of steam
Kg/batch
12
23
70
140
211
282
366
465
Amount of compressed air
M3/min
0.3
0.3
0.3
0.6
0.6
0.9
1.1
1.6
Power of fan
kw
2.2
4
5.5
11
18.5
22
30
45
Temperature
°C
Automatic adjustable at the range of room temperature to 120°C
