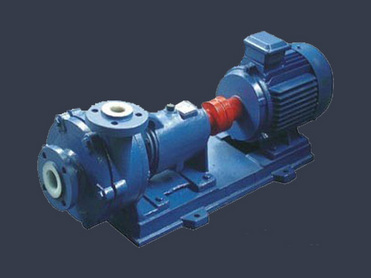

UHB-ZK corrosion resistant mortar pump is a single-stage single-suction cantilever centrifugal pump using steel liner made of ultra high molecular weight polyethylene , the material is a new generation of corrosion resistant plastic on the current international ; has strong corrosion resistance and extraordinary wear resistance. The pump is widely used in temperatures below 100 degrees , solid content ( hard soft particles are not limited to ) does not exceed 40% of conveying any concentration of acid, alkali, salt and strong oxidizing agents , organic solvents and other media .
Design Features
UHB-ZK corrosion resistant mortar pump series is designed for transport has certain corrosive and contains fine particles or crystalline media and design, with ultra-high molecular weight polyethylene steel liner molding process, has excellent corrosion resistance and excellent wear resistance, the former structure is designed as a cantilever open , semi-open impeller ( without front cover ) , by enhancing the resistance of the flow channel , the medium particles and impurities in the chamber by the pump and not quickly congestion, fluorine rubber seal for the sealing ring K packed cooling water jacket , taking into account the dual demands of corrosion and wear .
This series of products in metal smelting , titanium dioxide , fine chemicals , fertilizer and other industries by users. Also available according to customer specific temperature corrosion or require the use of fluorine plastic lining, can also be customized special flow, head of the non-standard models.
The main purpose
This product is widely used in: pH , salt , oil , food and beverages, alcohol , organic solvents and other liquids , especially for the transport of fine particulate containing corrosive liquids. Operating temperature : -20 ℃ ~ 95 ℃, the particle diameter : ≤ 40 mesh ; concentration : ≤ 50%.
Model significance
UHB-ZK50/20-30
UHB - high molecular weight polyethylene pump code
Z - Z impurities mortar
K - semi-open impeller
50 - pump inlet diameter (mm)
20 - Flow (m3 / h)
30 - Head (m)
