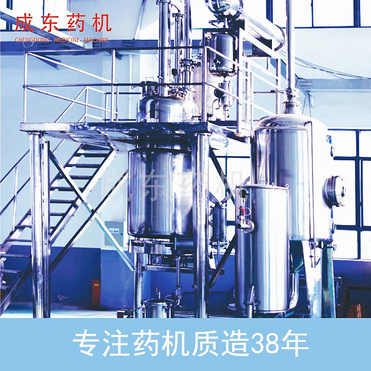

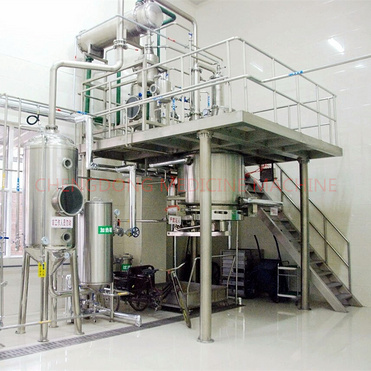

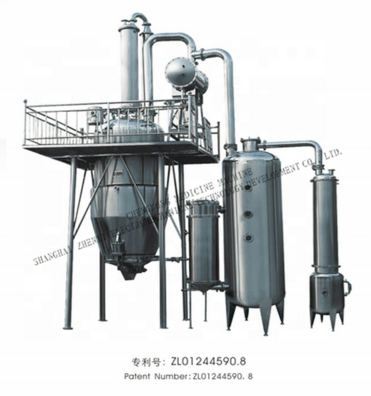

Thermal Reflux Extraction And Concentration Unit

Compact High Efficiency Thermal Reflux Extraction Concentrator Machine applies to herbal extraction, essential oil extraction, extract concentration, extract paste concentration and alcohol recovery for plants, animals, Chinese medicine, food additives etc. All material connected parts are made of SUS304, meet GMP standards.

Advantage:

1. The ointment collecting rate is 10~15% higher than that of the multifunctional extracting tank.The effective components in the ointment are 1 time higher. During the extraction, the hot solvent will be continuously added to the medicine surface and pass the medicine materials layer from upward to downward to dissolve the effective components in the medicine materials. The content of solute in the medicine and the mass of solute in the solvent keep high gradient, and the solute in the medicine will be rapidly dissolved until it is completely dissolved. Therefore, the extracting rate of effective components is high. The concentration is completed in another sealed equipment, so the loss is small and the conversion rate is high.  Therefore, the ointment collecting rate is high and the content of effective components in the ointment is high.

2. As the solute is rapidly dissolved, the extracting time is short, and the concentration and extraction are carried out simultaneously, it only takes 7~8hours to make the medicine into concentrated ointment.Thus the utility efficiency of the equipment is very high.

3. The investment is very economic due to the simple equipment, small landing area and high utility efficiency of the equipment.

4. The solvent is added only once during the extraction and can be reused in a set of closed equipment. The solvent in the medicine residue can be substantially recovered. Therefore, the solvent consumption is 30% fewer than that of multiple extracting tanks & the consumption rate can reduce 50~70%.This has made it successful for the solvent to extract and purify the effective components in traditional Chinese medicine.

5. As the twice steam produced during the concentration acts as the heat source for extraction, the extracting liquid pumped into the concentrator has same temperature as that during the concentration. Therefore over 50% of steam can be saved. The operation is simple, which reduces operators.
