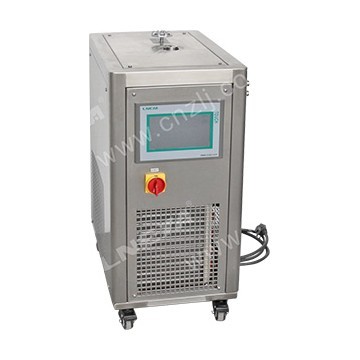

TCU of high and low temperature machine

Model

SUNDI-320

SUNDI-420W

SUNDI-430W

Temperature range℃

-30℃~180℃

-45℃~180℃

-45℃~180℃

Control Mode

Feed forward PID + Our special dynamic control calculation, PLC controller

Temp. control

Option: process temperature control or jacket oil temperature control

Temp. difference

Set or control the temperature difference between jacket oil and raw material process

Program Editor

20 programs, each program can edit 45 steps.

Communication protocol

MODBUS RTU Protocol, RS 485 Interface

Temperature feedback

Heat-conducting medium: PT100    Raw material process: PT100

Temp. accuracy

±1℃

±1℃

±1℃

Heating power

2kW

2kW

3kW

Cooling capacity

180℃

1.5kW

1.8kW

3kW

50℃

1.5kW

1.8kW

3kW

0℃

1.5kW

1.8kW

3kW

-5℃

0.9kW

1.2kW

2kW

-20℃

0.6kW

1kW

1.5kW

-35℃

0.3kW

0.5kW

Circulation pump

Max10L/min

0.8BAR

Max10L/min

0.8BAR

Max20L/min

2BAR

Compressor

Embraco

Embraco

France

Expansion valve

Danfoss

Danfoss

Danfoss

Evaporator

KAORI Plate heat exchanger

Operation Panel

7-inch color touch screen controller, temperature curve record, data export to excel format.

Safety protection

Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device,

liquid low level protection, high temperature protection and temperature fault protection.

Closed
circulation system

The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature,

pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.

Refrigerant

R-404A

Connection size

DN-15 or M24*1.5

DN-15 or M24*1.5

DN-15 or M24*1.5

Water-cooled type W

(cooling water at 20℃)

450L/H

1.5bar~4bar

550L/H

1.5bar~4bar

Dimension

350*550*620

350*550*620

400*600*1050

Weight

55kg

55kg

85kg

Power

AC 220V 50HZ

2.9kW (max)

AC 380V 50HZ

3.1kW (max)

AC 380V 50HZ

4.5kW (max)

Case material

SUS 304

SUS 304

SUS 304

Optional

Optional Ethernet interface, configure PC operating software

Optional

Optional outside touch screen display controller (separated), the communication line distance is 10 meter.

Optional power

100V 50HZsingle-phase, 110V 60HZ single-phase, 230V 60HZ single-phase,

220V 60HZ three-phase, 440V~480V 60HZ three-phase
