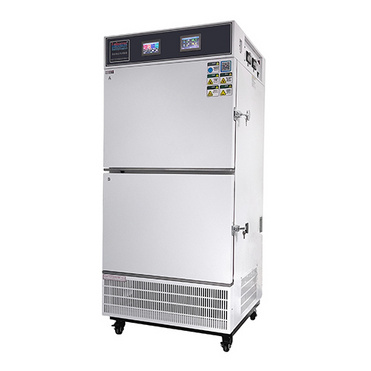

Stability Chambers（320GS~620GS）

❶

Reference Standard：ICH2003、Chinese Pharmacopoeia 2020 edition;

❷

Insulation material: Overall high-density polyurethane foam technology, with good insulation and moisture retention performance;

❸

Chamber Materials:The exterior is coated with high quality steel plate,The liner is made of mirror stainless steel 304, no pollution source, easy to clean;

❹

 Control system: Programmable color touch screen controller;

❺

Refrigeration system: Imported fully enclosed compressor;

❻

Humidity control: Original imported capacitive humidity sensor, high precision, low drift, long life, maintenance free;

❼

Data management: configuring needle micro printers and electronic data storage functions;

❽

Safety device: Compressor overheat and overpressure overload protection, water shortage protection, dry burning protection system, independent overtemperature protection alarm system;

❾

Alarm system：:On-site beeping alarm;

❿

Double Door structure：Interior door tempered glass door，Open the outer door to observe the samples，The temperature and humidity inside the container will not change in a short time，The outer door is solid can keep temperature and humidity，It can also prevent the influence of external light;

⓫

 Other configurations：Test hole、Rubber plug、Mobile casters、Door lock;

⓬

Controlling Temperature Precision：Temperature Fluctuation ＜  ±0. 5℃；Temperature Deviation ＜  ±1.0℃ (Without light);

⓭

Controlling Humidity Precision：Humidity Fluctuation ＜  ±2%RH；Humidity Deviation ＜  ±3%RH(Without light);

⓮

Power：AC220V±10% 50HZ;

⓯

Environment Temperature：+5  ~  35℃ ;

⓰

Optional: Temperature- humidity deviation, sudden power failure , control by Remote  SMS alarm.

Model

Temperature

Range

( ℃ )

Humidity Range

(RH)

Capacity

(L)

Interior

Dimensions(mm)

W×D×H

External

Dimensions(mm)

W×D×H

Power

(kW)

Shelf

(Standard)

Chamber Structure

Remarks

Labonce-320GS

15 ~  65

20 ~ 95%

150

680×500×460

860×840×1880

2.5

2

UP

A(Temperature

+Humidity) B(Temperature

+Humidity)

150

680×500×460

2

Down

Labonce-520GS

15 ~  65

20 ~ 95%

250

600×500×830

1610×870×1650

3.0

3

Left

250

600×500×830

3

Right

Labonce-620GS

15 ~  65

20 ~ 95%

300

600×500×1000

1610×870×1820

3.2

3

Left

300

600×500×1000

3

Right

300

600×500×1000

3

Right

Remark

CGS series: A chamber has four functions: temperature, humidity, visible light, and UVA. Illumination measurement is equipped with visible light and UVA   sensors as standard, and both visible and UVA values are automatically printed and stored; Visible light range: 100-8000Lux, illumination deviation: 4500 ± 500Lux; The total illumination of the lighting test shall not be less than 1.2 × 106  Lux· hr；   UVA range: 0.84~5w/ ㎡ , with a total UVA energy of no less than 200w · hr/ ㎡ ; When there is no light, the temperature and humidity indicators are the same as GS.
