Small pilot carbonylation plant for DMC production

Name: Small pilot carbonylation plant for DMC production
Availability: small-pilot-carbonylation-plant-for-dmc-347397.html

Category:Laboratory
Product Name:Small pilot carbonylation plant for DMC production
Price(USD):Negotiable
Company:SHANGHAI YANZHENG EXPERIMENTAL INSTRUMENT CO.,LTD.

Send Inquiry

Favorites

Similar Products

Chlorotrimethylsilane process plant

NSC via a typical quick-opening magnetic stirred reactor

GM Diaphragm GM-0.5/0.5A/0.5B/1A

Multi-station magnetic stirrer

TFST Air Steam Mixture Sterilizer

2X15-3Digital display constant temperature magnetic stirrer

Explosion proof precision constant temperature box

Eco KF Titrator

Multi-functional recirculating loop injection reactor

Multi-functional desktop fixed bed

Basic Info

Factory Location: Shanghai

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

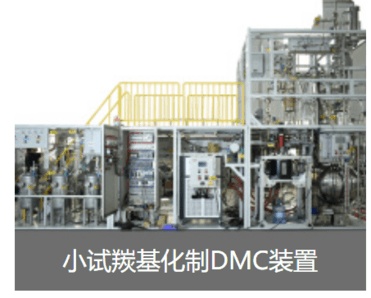

DMC synthesis pilot plant is used to evaluate the catalyst, feel the production process, collect process data, and prepare for the expansion of production. The main body of the device is made of 316L, with a design pressure of 5MPa and an operating pressure of 2.2MPa. The system consists of a gas inlet system, a recirculation and compression system, a gas metering and heating system, a visual reactor system, a material separation system, etc. The device has many operating units, a strong synthesis, a well-organized safety interlocking system, a high degree of automation, a high degree of data accuracy, and a good reproducibility. The main production parameters are high gas circulation volume, about 200Nm3/h gas circulation volume, operating pressure 2.2MPa, experimental monthly output of 1 ton level, the overall equipment length, width and height = 7m * 2.5m * 4m, weighing about 4 tons.
