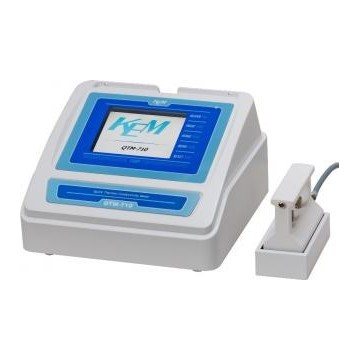

Quick Thermal Conductivity Meter QTM-710/QTM-700

Name: Quick Thermal Conductivity Meter QTM-710/QTM-700
Availability: quick-thermal-conductivity-meter-qtm-710-225396.html

Product Name:Quick Thermal Conductivity Meter QTM-710/QTM-700
Price(USD):0.00
Company:KYOTO ELECTRONICS MANUFACTURING (Shanghai) Co., LTD.

Send Inquiry

Favorites

Features

Clear and easy operation with the touch-screen of 5.7 inch color LCD
Intuitive operation is possible with touch-screen.
Quick measurement with 3ch probes
By connecting the multiple probes (the same type or other type), the equipment can measure samples in series without changing the probes, less waiting time.
Easy data transfer with a USB flash drive
Measurement data transfer to personal computer is easy with a USB flash drive.
Data is viewable and editable in the spreadsheet software because it is saved in CSV format.
Security function
Password setting and security level can be selected in accordance with the intended use and the environment.
Probe is compliant with traceability.
Traceability system of the thermal conductivity standard substance (reference plate) is established for the purpose of further improvement of the reliability of the measured values
Built-in Thin film measurement (QTM-710)
Thermal conductivity of the sheet sample such as a film and a sheet of fiber products can be measured.
It is easy to analyze the result since the average and the standard deviation of measurement results are calculated and the rise temperature graph is shown.

Specification

Main unit

Specification	Contents
Name	Quick Thermal Conductivity Meter
Type	QTM-710	QTM-700
Method	Hot Wire Method
Accuracy※1	Within ±5% reading value per reference plate※2 (room temp. only)
Repeatability※1	3% (at the measurement of reference plate)
Thin film measurement	Compatible	Not compatible
On-window display	5.7 inch color LCD
Language	English / Japanese / Chinese / Korean
External I/O	RS232C : 2ch (Printer, Data Acquisition Software) USB : 2ch (Printer, USB flash drive)
Ambient conditions	Temperature : 5 to 35℃ Humidity : 85%RH or below (no condensation)
Power supply	DC24V 5A (main unit), AC100-240V±10% 50/60Hz (AC adaptor)
Dimensions	262(W)×276(D)×158(H)mm
Weight	Approx. 4kg
CE marking	CE marking (EN61326-1, EN61010-1), suitable for RoHS

※1 Measurement accuracy and repeatability of Thin film measurement depends on the state of the sample
※2 Reference plate (Quartz glass / Silicone rubber / Polyethylene foam)

Probe

< Normal measurement >

Specification	Contents
Type	PD-11N	PD-13N
Dimensions	110(W)×50(D)×100(H)mm	110(W)×50(D)×100(H)mm
Measurement range	0.03-12W/(m K)	0.03-12W/(m K)
Measurement temperature	5-35℃	5-35℃
Measurement time	60sec	60sec
Sample size	100×50×20 mm or more	100×50×20mm or more

Specification	Contents
Type	PD-31N
Measurement range	0.06-5W/(m K)
Measurement temperature	-100-1000℃
Measurement time	60sec ※
Sample size	100×50×20 mm or more 2 pieces

※Optionally set the Measurement time.

Specification	Contents
Type	PD-11N	PD-13N
Measurement range	0.03-5W/(m K)	0.03-5W/(m K)
Measurement temperature	Room temperature	Room temperature
Measurement time	60sec	60sec
Sample size	100×50×t mm or more t/λ≧1mm/(W/(m K))	100×50×t mm or more t/λ≧1mm/(W/(m K))

Option

Name of option	Model	Purpose
Box type probe	PD-11N	Various measurements of the sample in block, powder and sheet are possible with PD-11N. Available for thin film measurement
Insulated moisture-proof probe	PD-13N	Insulation film is applied to PD-11N Thermal conductivity of materials with moisture and conductive materials are possible to measure with PD-13N. Available for thin film measurement
High-temperature probe	PD-31N	PD-31N is a conventional sensor based on the measurement principle of Hot Wire Method. Measurements of thermal conductivity of firebricks or heat insulation materials at high and low temperature are possible.
Vessel for powder	Vessel for powder	The measurement of thermal conductivity of powder sample is possible with the standard probe (PD-11N).
Data Acquisition Software	SOFT-CAP	This software can connect your PC with various KEM analytical instruments so that measurement results can be downloaded directly to Microsoft® Excel or stored in CSV file format.
Thermal printer	DP-600	Thermal printer by thermal line dot method
Printer	IDP-100	Dot matrix printer using an ink ribbon

Compatibility of Main units and Options

Model	QTM-710	QTM-700	QTM-500
PD-11N	○	○	×
PD-13N	○	○	×
PD-31N	○	○	×
PD-11	×	×	○
PD-13	×	×	○
PD-31	×	×	○
Vessel for powder	○	○	○
Software for measuring thermal conductivity of thin sheet for QTM	×	×	○
SOFT-CAP	○	○	○
IDP-100	○	○	○
DP-600	○	○	×
