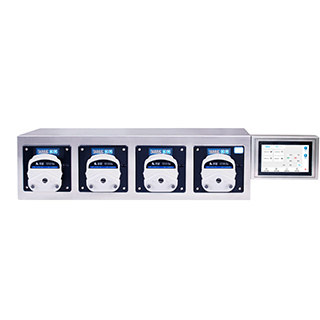

Peristaltic pump filling system UTF01

Features of filling system:

Unique drive unit, convenient mechanical matching, single channel, unique lack of bottle filling function
Unique button to set address/fine-tune flow rate Fine-tune/calibrate during filling process
Cascadable structure up to 32 channels, stable operation, super anti-interference
Online/offline flexible dual operation mode Fault alarm to ensure safe production
Support internal control/external control/communication control

Main controller features:

Large-screen touch control (7/10/10), simple and intelligent, supports saving and recalling of customer parameter schemes
Manual touch screen/communication command, dual operation Provides ratio adjustment/volume calibration function
Arbitrarily control the start/stop, forward/reverse of each channel, and provide online adjustment function of filling liquid volume
Any control single/multi-channel filling or recycling at the same time Provide wireless connection WIFI function (optional)
Support all channels to suck back at the same time (length/delay) RS485 bus communication interface, easy external control



Basic parameters:

Speed ​​range 0.1-600rpm
Flow range 0.002-3000ml/min
Filling accuracy <±2%
Flow fine-tuning range 80%-120%
Control mode: touch screen main controller + up and down membrane buttons + wireless/external control
Display mode 7⼨/10⼨ industry touch screen + four-digit LED digital display
Key mode, ratio adjustment mode and address setting mode
Control mode Offline mode, online mode
Calibration method: size adjustment, volume calibration
Customer data storage 20 groups
Applicable pump head YZ1515x, YZ2515x, DG series, TX315, KZ25
Output pressure 0.1-0.12MPa
Protection grade IP31
Working temperature 0℃ to 40℃ (32F to 104F)
Working environment humidity 20%-80%
Communication interface RS485 bus, touch screen to set communication address, baud rate, parity, stop bit
Wireless connection WIFI (optional)
Communication protocol ModbusRTU standard protocol
Power supply controller-AC90-260V/50/60Hz, single group system-AC180-260V/50/60Hz
Motor 57 stepper motor
Motor voltage DC 48V

Performance:

Filling liquid volume 0.1ml-9999.99ml/time Display adjustment resolution: 0.01ml
Filling time 0.1s-9999.9s/time Display adjustment resolution: 0.1s
Interval time 0.2s-9999.9s/time Display adjustment resolution: 0.1s
Filling times 0-9999 times "0" means infinite loop
Suction angle 0-7200° Display adjustment resolution: 1°
Suction speed 0-300rpm Display adjustment resolution: 1rpm
Suction delay 0s-60s Display adjustment resolution: 0.1s
