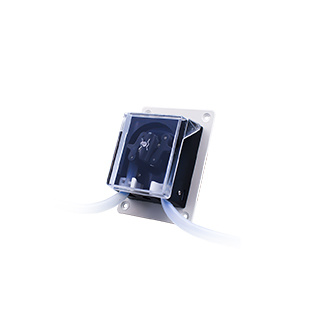

OEM peristaltic pump TH15 series

Chuangrui Peristaltic Pump has always been committed to providing customers with safe & reliable fluid treatment. Based on customer-specific requirements, we rely on advanced technical force and strong product strength to quickly promote new designs and make solutions more targeted , Effectiveness, tailor-made to provide you with exclusive and efficient OEM product services.

　　OEM/TH15 pump head is designed for micro flow.

　　·Easy to replace and fix the hose.

　　·The bite can be fine-tuned, and the rollers are made of high-quality materials.

　　·Note: clockwise operation will obtain a larger flow rate, and counterclockwise operation will result in a larger outlet pressure.

　　·When installing an inlet pipe or a harder pipe, please operate counterclockwise to increase the hose pressure and torque.

Model Pump Head Motor Maximum Flow (ml/min) Hose Maximum Speed ​​Motor Note
TH15/OCZL24-100R TH15 AC220V 170 25# (standard) 100 Synchronous motor The default hose model is 25#, please contact the manufacturer for other sizes
TH15/OCZL12-100R AC110V 170 25# (standard) 100 synchronous motor

Hose inner diameter outer diameter Maximum speed (rpm) Maximum flow (ml/min)
14# 1.6 4.8 100 27
19# 2.4 5.6 100 51
16# 3.1 6.3 100 82
25# 4.8 8.0 100 170
