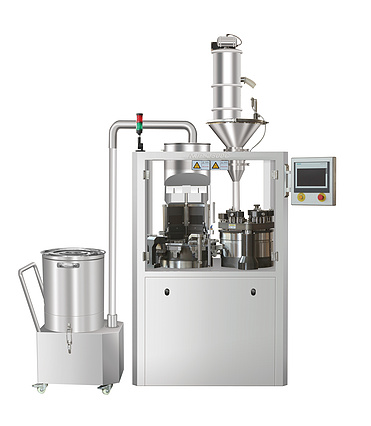

NJP-2500C Automatic Capsule Filling Machine

Technical Parameters

Specifications

NJP-2500C

Maximum yield

150 000 grains/hour

machine weight

1500kg _

Machine volume

1190 × 1120 × 2130mm (height with automatic powder feeder: 2750mm)

power supply

Three-phase five-wire AC 380/220V 50Hz

total power

8 kw

Number of holes

18 holes

Vacuum _

63 m³/h -0.04 ～ -0.08M P a

vacuuming

24.5Kpa 210 m³/h

compressed air

Air consumption 6m³/h Pressure 0.3～0.4MPa

source of water

Water flow 500L/h 0.2-0.3Mpa

water requirements

The water ring vacuum pump and the water tank are recycled, and the water source can be connected externally

working noise

≤75dBA _ _

Working temperature

21°C±3°C

working relative humidity

40-55%

Capsule on chance

Empty capsule ≥ 99.9 % Full capsule ≥ 99.8 %

Adapt Capsules

00#-5# capsule/safety capsule AE

Loading accuracy

Western medicine ± 3% Chinese medicine ± 4%

Adapt to the filling range

Powder , Granule, Pellet, Tablet

special function

Powder collector function

Material

316 stainless steel is used for parts in direct contact with medicines

specification

Fully sign cGMP requirements
