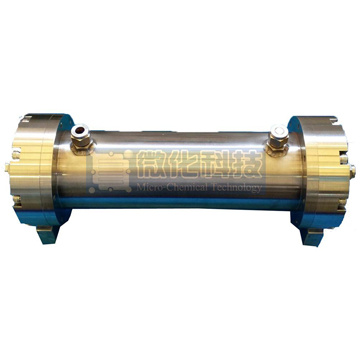

MCT Micro-heat exchanger

Equipment Description：

MCT Micro-heat exchange can not only do the heat exchange, do the heat preservation, but also used as a continuous flow of microreactor.

Equipment Model: MHE

Equipment Parameter：

Working Capacity： 100mL/min, 200 mL/min，Customize；pilot, industrial equipment（Customize by different working conditions）；

The Working Temperature：-20℃～100℃，～200℃（Customize），～300℃（Customize）；

The Working Pressure：3MPa，～5MPa（Customize），～10 MPa（Customize）；

The Medium Contact Material：304，316，PEEK

Other Customize Medium Contact Material： 2205，904 stainless steel；Alloy material as tantalum alloy, hastelloy alloy; Non-metallic material as ceramics, glass, natural stone, graphite；Organic material as PP, PEEK, PTFE, PE, PAS；

Usage：heat exchange, heat preservation, continuous flow and so on
