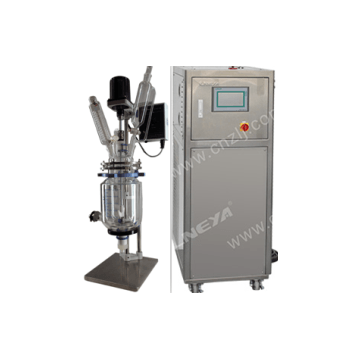

material temperature of Mini Plant Systems

Model

SUNDI-825W

SUNDI-835w

SUNDI-855W

SUNDI-875W

SUNDI-8A10W

SUNDI-8A15W

Temperature range ℃

-80℃~250℃

-80℃~250℃

-80℃~250℃

-80℃~250℃

-80℃~250℃

-80℃~250℃

Control Mode

Feed forward PID + Our special dynamic control calculation, PLC controller

Temp. control

Option: process temperature control or jacket oil temperature control

Temp. difference

Set or control the temperature difference between jacket oil and raw material process

Program Editor

20 programs, each program can edit 45 steps.

Communication protocol

MODBUS RTU Protocol, RS 485 Interface

Temperature feedback

Heat-conducting medium: PT100    Raw material process: PT100

Temp. accuracy

±1℃

±1℃

±1℃

±1℃

±1℃

±1℃

Heating power

2500W

3500W

5500W

7500W

10000W

15000W

Cooling

capacity

250℃

2500W

3500W

5500W

7500W

10000W

15000W

100℃

2500W

3500W

5500W

7500W

10000W

15000W

20℃

2500W

3500W

5500W

7500W

10000W

15000W

0℃

2500W

3500W

5500W

7500W

10000W

15000W

-20℃

2500W

3500W

5500W

7500W

8500W

14000W

-40℃

1800W

2550W

3300W

5800W

6300W

11000W

-60℃

1000W

1400W

1600W

3000W

3300W

5800W

-75℃

300W

420W

700W

1300W

1400W

2400W

Circulation pump

Max20L/min

2BAR

Max35L/min

2BAR

Max50L/min

2BAR

Max110L/min

2.5BAR

Max110L/min

2.5BAR

Max110L/min

2.5BAR

Compressor

Copeland

Copeland

Copeland

Copeland

Copeland

Copeland

Expansion valve

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Oil separator

Emerson

Emerson

Emerson

Emerson

Emerson

Emerson

Evaporator

KAORI Plate heat exchanger

KAORI Plate heat exchanger

Operation Panel

7-inch color touch screen controller, temperature curve record, data export to excel format.

Safety protection

Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device,

liquid low level protection, high temperature protection and temperature fault protection.

Closed circulation system

The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature,

pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.

Refrigerant

R-404A R23

R-404A  R23

R404A  R23

R404A  R23

R404A R23

R404A  R23

Connection size

DN-15 or

M24*1.5

DN20 or

M30*1.5

DN20 or

M30*1.5

DN20 or

M30*1.5

DN20 or

M30*1.5

DN-25

M38*1.5

Water-cooled type W

(cooling water at 20℃)

900L/H

1.5bar~4bar

1200L/H

1.5bar~4bar

1800L/H

1.5bar~4bar

2300L/H

1.5bar~4bar

3200L/H

1.5bar~4bar

4500L/H

1.5bar~4bar

Dimension (water-cooled)

500*600*1350

600*700*1650

700*700*1650

700*800*1650

1000*800*1650

1000*950*1650

Weight (water-cooled)

240kg

285kg

345kg

500kg

600kg

750kg

Power

AC 380V 50HZ

6.5kW (max)

AC 380V 50HZ

10kW (max)

AC 380V 50HZ

13kW (max)

AC 380V 50HZ

17kW (max)

AC 380V 50HZ

22kW (max)

AC 380V 50HZ

33kW (max)

Case material

SUS 304

SUS 304

SUS 304

SUS 304

SUS304

SUS304

Optional

Optional Ethernet interface, configure PC operating software

Optional

Optional outside touch screen display controller (separated), the communication line distance is 10 meter.

Optional power

220V 60HZ three-phase, 440V~480V 60HZ three-phase
