Marya Pharmaceutical Automatic 6/8/10 Nozzles Freeze-Dried Powder Auger Vial Powder Filling Machine

Main application

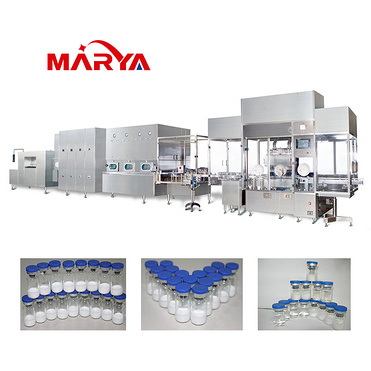

The linkage line consists of vertical ultrasonic washing machine, hot air circulation sterilization tunnel, filling and sealing machine. The linkage line can be used in combination or in a single machine. The linkage line an complete water spray filling, ultrasonic cleaning and flushing(internal and external), water and air flushing(internal and external), preheating, drying and sterilizing to remove heat source, cooling, filling, sealing, capping and other processes.

Features

Vertical ultrasonic washing machine using ultrasonic rough washing, circulating water, WFI and clean compressed air spray and clean the container alternately. Cleaning clarity and visible material detection effect is ideal; it is the most acclaimed cleaning machine in the world today.

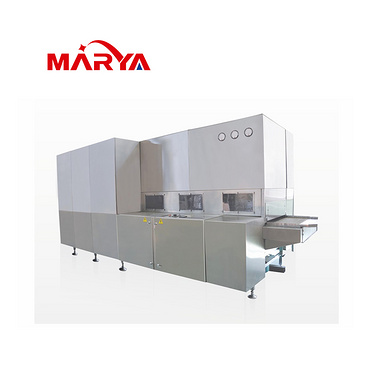

The sterilization tunnel adopts the principle of hot air laminar flow and high temperature sterilization process to preheat, dry, sterilize, remove heat and sterilization process. It is the most welcomed drying and sterilizing machine in the world.

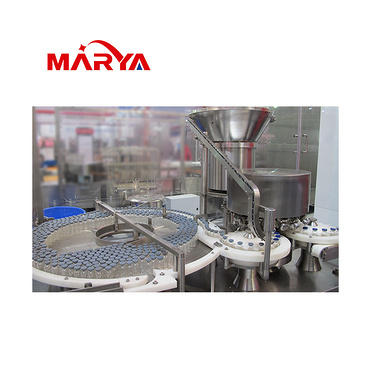

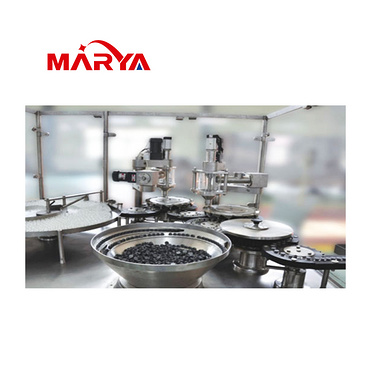

The filling and stoppering machine adopts V shape block to transfer and reciprocating tracking filling which can ensure stable vials transfer, full time of filling and accurate filling volume, using progressive stoppering way to ensure high qualification rate. It is the most popular filling and sealing machine in the world.
The interlocking production line adopts PLC control and touch screen operation, which can be used for linkage control or stand-alone operation. The control runs stably and with high automation.

Technical parameters
