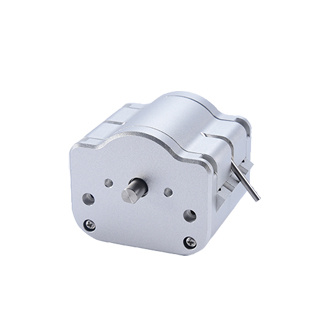

LP15-6 new metal precision pump head

Chuangrui LP15-6 pump head is a new type of all-metal pump head. It adopts phase difference complementary dual roller design, small pulse, stable operation, compact structure, and can be widely used in drug filling and sensitive fluids. The precision processing.

　　 1. Smooth transmission

　　The phase difference complementary double roller design, the pulse is small, which is conducive to the smooth transmission of the special fluid.

　　2, flexible application

　　Can install double Y-type hoses, or independently install double hoses, supporting series connection.

　　3, loading and unloading

　　 The pump head lever is easy to lift and press down, which is convenient for hose replacement and disassembly.

　　4, accurate flow

　　The all-metal shell has high mechanical strength, compact structure, fine workmanship, and accurate flow.

　　5, durable

　　Pump body-aluminum alloy, double roller assembly-304 stainless steel, anti-corrosion and high temperature resistance, long life.

　　6, strong practicality

　　 It is suitable for 7 different sizes of hoses (positioning block), with a wide flow range and stronger practicability.

Basic parameters:

Reference flow rate 0.014-4560ml/min PharMed BPT tube, Viton tube, etc.
Hose model 13#/14#19#16#25#/17#18#
Positioning block model supporting corresponding hose
         LP15-6
(Flat shaft end/round shaft end) Roller assembly 304 stainless steel
Pump body aluminum alloy
Hose positioning block aluminum alloy
