Product details

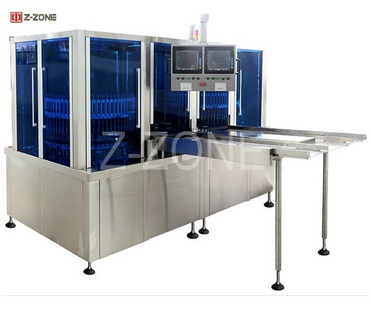

It is mainly used in pharmaceutical production to inspect impurities in ampoule injection. The inspect items includes impurities in which glass crumbs , fiber , hair , white powder, white dots are included and appearance inspect in which focal head, carbide, convex head, socket head and bubble head are included.
Working process
Products to be inspected→ infeed bottles→ bottle pressing→ rotate bottles → stop → take pictures → photoelectric inspection area → image processing software system analysis → bottle outfeed → Qualified bottles and the rejects collection
Main Structure
1. Rack → bottle-infeed conveying devices → bottle-infeed wheel→rotary tray→ bottle-pressing device → rotary apparatus → cam lift → quick change size parts device → outfeed wheel → qualified products/rejects collection plate.
2. Driving system、servo system → computer software processing system → control system
3. inspection camera → lighting device → light harrier → Light source servo tracking device → image processing system
Main technical parameters
1.Inspection speed: 600×(1±5%) pcs/min
2.Bottle: 1-5ml Ampoules
3.Total electric capacity: 5.9kW
4.Voltage: 380V，50 Hz
5.Precision: ≥40μm
6.Bench height: 900mm
7.Dimensions: 3530×1700×2000mm(L*W*H)
8.Net weight: about 1800kg
