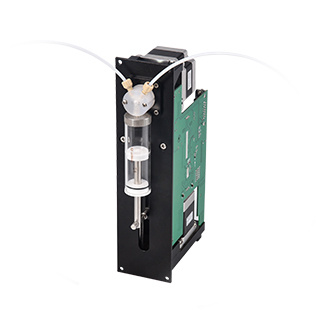

IZS60-1A Industrial Syringe Pump

The IZS60-1A industry-automated high-precision syringe pump is a compact, open-integrated, high-profile OEM product. It is mainly used for the customization of equipment and instruments. The pump is controlled by PC software input commands. It can automatically complete complex and extensive fluid processing tasks (transport/dilution/distribution/dropping), providing a more stable and effective solution for the transmission and processing of high-precision micro-fluid.

　　1. Driven by stepping motor, grinding ball screw transmission piston to ensure continuous and stable high-precision transmission.

　　2, 50μl-25ml multi-model injectors are available, with a wide range of linear speeds and diversified applications.

　　3, flexible control, support RS232, RS485 communication control; single pump can be used, can be used in cascade (≤15 units)

　　4. Excellent electromagnetic compatibility and anti-interference, safer and more reliable operation, suitable for industrial environment.

　　5. The liquid-contacting parts such as the injector and valve body are imported from the original, which is corrosion-resistant and durable, and has a long service life.

　　6. ​​Intelligent operating system: anti-collision alarm, error report, photoelectric encoder out-of-step monitoring...

　　7, open integration, small size, easy matching, support OEM customization.

Basic parameters:
·Injector
Working principle Stepper motor drive, ball screw drive, rotary encoder to monitor displacement, with 0 bit mark
Rated stroke 60mm corresponds to 6000 steps
Linear speed range 50μm/sec – 50mm/sec (ie: 20 minutes slow to complete the stroke; 1.2 seconds faster to complete the stroke)
Control resolution 1 step or 0.01mm
When the stroke control accuracy is greater than or equal to 30% of the stroke, the error is less than or equal to 5‰
Piston driving force Full driving force≥7kg; secondary driving force≥3kg
Injector type number 50μl 100μl 250μl 500μl 1ml 2.5ml 5ml 10ml 25ml

·Applicable valve

Valve type 3 port 120º valve
Transposition time The transposition time of two adjacent ports≤250ms
Valve drive Stepper motor drive, photoelectric encoder feedback position, out-of-step monitoring
Valve material Valve core: PTFE Body: chlorotrifluoroethylene
Valve connection Pipeline connection: 1/4-28 threaded connection; Injector connection: 1/4-28 threaded connection

·External control interface

Communication interface RS485 communication interface, communication rate: 9600 baud rate/38400 baud rate optional
 RS232 communication interface, communication rate: 9600 baud rate/38400 baud rate optional
External input interface 2 external TTL input, with isolation; used to control the start and stop after the pause
External output interface 3 external TTL output, with isolation
Device address dialing interface The device address can be set externally through the BCD dial
Parameter jumper selection interface Reserve 6 external jumper selection parameters (valve selection, communication rate selection, communication mode selection)

·Software function

Initialization command Complete the initialization state of the valve and piston through various commands
Parameter setting commands The speed, start slope, relative 0 point position, dead zone volume and other parameter settings can be completed through different commands.
Valve control commands to complete the movement of various valve positions
Piston control commands Realize the precise displacement of the piston through different commands
Control commands Realize single, repeated, and delayed execution of single commands, combined command sequences, and stored command sequences through different commands; as well as pause and terminate tasks, etc.
Report commands Various commands can be used to monitor the valve position, piston position, piston driving force, piston speed and other status of the device in real time
