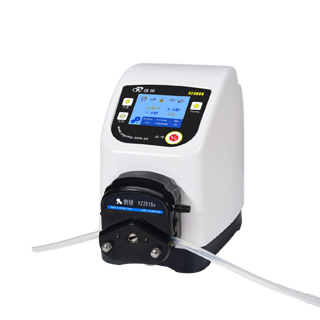

Intelligent distribution type peristaltic pump CF3000

CF series peristaltic pumps have powerful intelligent distribution functions: storage function, external control function, power-off memory, calibration function, full speed function, suction function, lock screen function, display function, touch screen function.

　　Storage function: User data storage function: 9 groups of filling data can be stored for the user, the homepage one key to enter the storage interface, you can quickly find the original filling data, directly choose to execute the operation.

External control function: multiple external control mode options: communication mode, analog mode, support RS485 / MODBUS communication protocol, · analog control (0-5V0-10V 4-20mA...) foot switch control, provide communication protocol customization Serve.

　　Memory function: After power failure, the data will be stored in time. When the power supply is restored, the pump can memorize the control parameters before the power failure, which is safe and reliable.

　　Calibration function: Intelligent calibration function, flow correction: After setting the target flow, input the actual flow value, and the system will automatically perform flow correction to ensure accuracy and suitable for high-precision quantitative fluid transmission.

　　Full speed function: One key to control full speed operation, used for fast cleaning, filling, emptying, etc.

　　Re-suction function: In the distribution mode, the pump can be customized to run in the reverse direction after it is stopped to prevent liquid from dripping and leaking. By setting the suction angle and suction speed, high-precision distribution and metering can be realized.

　　 lock screen function: lock screen design, prevent accidental touch, application more at ease.

　　 Display function: The interface animation displays the operating status in real time, and the liquid flow rate and motor speed and other operating parameters are displayed on the same screen.

　　 Touch screen function: 3.5-inch color LCD screen, Chinese and English operation interface (language customization available), touch operation, intuitive and intelligent.

　　Multiple control methods: flexible control methods: with touch screen, keyboard control, and external control interface control methods, which are convenient for users to choose and use.

　　Multi-adapted pump head: two-way high-torque low-power motor, can be installed with a variety of pump heads: YZ series, DG series, TX315 pump head; according to the actual application of the customer, multiple pump heads can be connected in series to meet different flow requirements.

　　Dual working mode: CF series is an intelligent peristaltic pump with two working modes: flow mode and distribution mode; one-key switching of the dual operation interface of flow and distribution makes the transmission and filling operation smarter and more convenient.

Drive model CF3000
Speed ​​range 0.1~300rpm (reversible)
Speed ​​resolution 0.1rpm
Flow rate range 0.007~1140ml/min
Flow error ＜±0.5%
Speed ​​control method: touch screen + membrane button (support external signal control and communication control)
Display mode: color liquid crystal display (Chinese and English optional)
Allocation times 0-9999 times
Distribution time 0.1 second-9999 minutes
Interval time 0.1 second-9999 minutes
Suction angle 10°~720° (1° step)
Suction speed 10~300rpm
Power supply AC220V±10% (standard) or AC110V±10% (optional)
Power ＜35W
External control function RS485 communication interface, support MODBUS communication protocol, control start/stop/direction/speed (0~5V, 0~10V, 4~20mA, 0~10kHz optional)
Working environment temperature 0~40℃, relative humidity <80%, no condensation
Drive size 254×184×145 (mm)
Drive weight 6.05kg
Motor model stepper motor
Protection grade IP31
Working mode Flow mode, distribution mode
External control interface DB-15


Applicable pump head and reference flow ml/min
  Pump head (1,2) YZ1515x (1,2) YZ2515x DG1~12 (6) DG1~12 (10) TX315
Hose 13# 14# 19# 16# 25# 17# 18# 15# 24# 0.5*0.8 1*1 2*1 2.4*0.8 3*1 13# 14# 19# 16# 25# 17# 18#
CF3000 (single pump head) 0.007~1140 (single pump head) 0.17~870 0.002~45 0.0015~33 1433
