Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

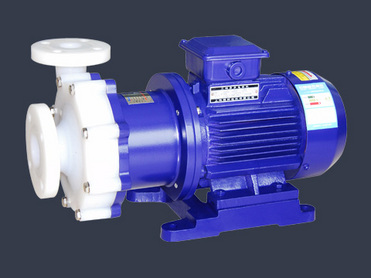

Fluorine plastic magnetic pump using a magnetic coupling to transmit power , completely sealed without leakage , when the motor is driven by magnetic coupling outside the magnet rotates, the magnetic field lines passing through the gap and isolation units , acting on the magnet, so that the pump rotor and synchronous motors rotation, torque is transmitted without mechanical contact . As the liquid is enclosed in isolation kit , which completely solved the leakage of materials, reduce pollution , save energy , clean up the environment, protect the health production line staff. Media situation and the process conditions combined domestic production fluorine magnetic pump many domestic utility units , the company organizational researchers developed a new generation of patented product ( patent number : 201020670554.X) fluorine magnetic pump.
Product Features
1 pump liners, impeller rotor , isolation units are made of pure F46 molded disposable material , no impurities precipitation , ideal for the transmission of high -purity , highly corrosive chemical liquid ;
(2) the use of ductile iron pump casing , pump according to the national standard flange design, mechanical strength is very good, and the pipeline can withstand heavy loads ;
3 F46 material flow components lined with six smooth smooth , superior hydraulic performance , small hydraulic friction loss , high efficiency ;
4 shaft , bearing sets, movement rings are made of sintered silicon carbide , with high hardness, high wear resistance, high corrosion resistance and other characteristics ;
5 bearing housing bore unique spiral groove design, the vice- lubricated plain bearings more convenient and easier to remove heat generated by friction when the pump is running ;
6 sets out the addition of the isolation of imported materials specially made PPS reinforced cover, so that the pump system can withstand higher pressures and the ferrule can be eliminated by heat generated by the use of magnetic eddy currents ;
7 external magnetic NdFeB material selection , up to 3600 gauss magnet surface , smooth torque transfer to the prime mover to the impeller, and high flow conditions will not slip , but also prevents the rotor and impeller pushed back ended ring contact , thus preventing friction heat and melt the fluorine plastic parts, to ensure the normal operation of magnetic pump in highly corrosive occasions ;
8 whole pump using pull -type structure , a person can conduct an internal inspection and parts replacement, and does not require disassembly pipeline .
Technical Parameters
Flow :1.8-100m3 / h;
Head :8-50m;
Speed : 2900r/min;
Power :0.12-45kw;
Diameter :12-125mm;
Temperature : -20-100 ℃.
