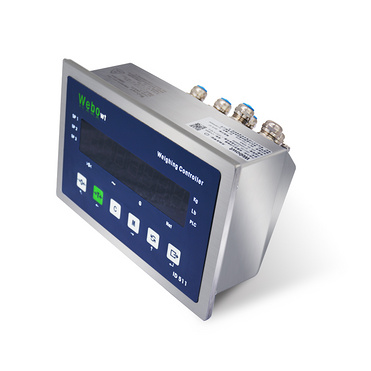

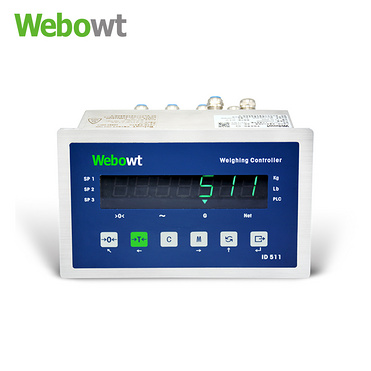

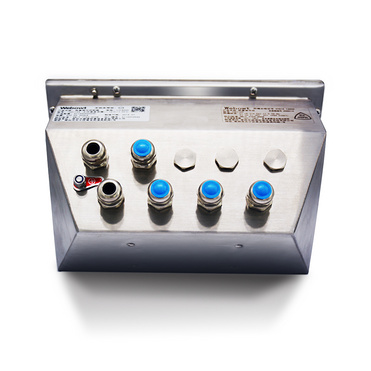

ID511 Weighing Indicator Dustproof Type

1. 7-bit LED display
2. Supports 1 analog scale input, with a maximum of 12 load cells
3. Metrological approval (CPA) 6000e certified accuracy, OIML: 6000e.
4. Have got OIML & CE certificates
5. Standard with serial ports x 2 RS232+RS232/485 or serial ports x 2 RS232+RS485 with one LAN port
6. Standard supports MODBUS-RTU, MODBUS-TCP (only supported by the ethernet version)
7. Optional PLC communication interface

• PROFIBUS-DP (Siemens PLC)
• PROFINET (dual LAN ports, built-in switch, Siemens PLC)
• EtherNet/IP (dual LAN ports, built-in switch, Rockwell PLC, Delta PLC)
• CC-Link (Mitsubishi PLC)
• Scale x 1 4-20mA (16-bit precision DAC)
• Scales x 2 4-20mA (16-bit precision DAC)

1. I/O (input/output options)

• In x 8 / OC Out x 12

• In x 8 / Relay Out x 12

1. Multiple calibration modes

• Supports up to 5-point calibration
• Calibration without weights
• Remote calibration through PLC communication interface

1. Application supports

• Basic weighing version
• Supports dual-speed preset point control and 8 simple comparison outputs
• Lower/upper limit material level detection

The working power supports AC 85-264VAC or DC 24VDC, and the maximum power consumption of the complete machine is less than 6W;

Product selection configuration

ID511 panel type
