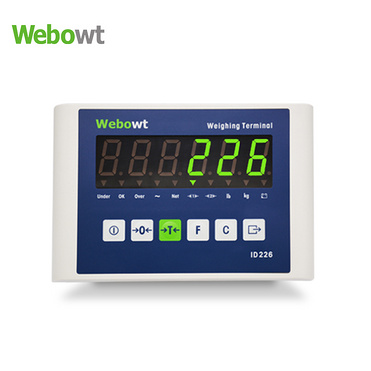

ID226 Weighing indicator ABS plastic housing

Name: ID226 Weighing indicator ABS plastic housing
Availability: id226-weighing-indicator-abs-plastic-hou-332150.html

Category:Automation & Informatization Products > Controllers & Drivers
Product Name:ID226 Weighing indicator ABS plastic housing
Price(USD):Negotiable
Company:Changzhou Weibo Weighing Equipment System Co., Ltd.

Send Inquiry

Favorites

Similar Products

FW650 touch screen explosion proof control box (7 inches)

ID550WL IOT Weighing Indicator

ID226 Weighing Indicator SS2 with Stainless steel round pipe

ID551PN - Single Channel Weighing Controller

ID226 Weighing Indicator SLIM square column

ID511 Weighing Indicator Panel Type

Intrinsically Safe Explosion-proof Weighing Indicator ID226X

ID550 Weighing Controller Dustproof type

ID511 Weighing Indicator Dustproof Type

FW650 Weighing Indicator Truck Scale Indicator Enhanced Version

Basic Info

Factory Location: NO.3 Building, Sino-Europe (Changzhou) Testing, Inspection and Certification Cooperation Industrial Park, Tianning District,Changzhou

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

Payment Terms: T/T

6-bit super large LED display with a word height of 33.4mm, available in red or green. Supports CPA 6000e certification accuracy and up to 200,000 display divisions.
Built-in switch power supply, supports wide voltage AC 85-264V power supply.
Built-in charging circuit, can be equipped with a 6V4.0AH lead-acid rechargeable battery.
Standard supports serial ports x 2: COM1 (RS232) + COM2 (RS485).
Standard supports MODBUS-RTU, continuous transmission, command input and output, SICS, and barcode scanner input.
Optional supports for add-ons

Relay output board
Ethernet communication board
Bluetooth communication board
WIFI communication board

Supports basic weighing function, X10 function, simple checkweighing and sorting function, counting function, and animal weighing function.
Supports Chinese printing function, capable of printing simple Chinese labels.
Installation method

ABS plastic shell (optional with round pipe bracket or square pipe bracket).

304 stainless steel dustproof housing (optional with desktop, round pipe bracket, or square pipe bracket).

Product selection configuration

Indicator Model

Shell Type

Hardware

Battery

Printer

Language

Display

ID226

ID226

0: Desktop SS1 housing

1: SLIM square column bracket

2: SLIM round pipe bracket

3: ABS housing round pipe bracket

4: Desktop SS2 housing

5: SS2 housing round pipe bracket

6: SS2 housing square column bracket

7: SS1 housing round pipe bracket

8: SS1 housing square column bracket

9: ABS housing square column bracket

A: RS232+ RS485

1: RS232+RS485+Relay

T: RS232+RS485+LAN

W: RS232+RS485+WIFI

Y: RS232+RS485+Bluetooth

U: RS232+RS485+LAN+Relay

V: RS232+RS485+WIFI+Relay

X: RS232+RS485+Bluetooth+Relay

0: None

1: NiMH battery (SLIM version)

2: Lead-acid battery

0: None

0: Standard application

1: Export version

2: Livestock scale without card reader, IP69K

3: Livestock scale with card reader, IP69K

0: Red

1: Green

Product selection configuration

Indicator Model

Shell Type

Hardware

Battery

Printer

Language

Display

ID226

ID226

0: Desktop SS1 housing

1: SLIM square column bracket

2: SLIM round pipe bracket

3: ABS housing round pipe bracket

4: Desktop SS2 housing

5: SS2 housing round pipe bracket

6: SS2 housing square column bracket

7: SS1 housing round pipe bracket

8: SS1 housing square column bracket

9: ABS housing square column bracket

A: RS232+ RS485

1: RS232+RS485+Relay

T: RS232+RS485+LAN

W: RS232+RS485+WIFI

Y: RS232+RS485+Bluetooth

U: RS232+RS485+LAN+Relay

V: RS232+RS485+WIFI+Relay

X: RS232+RS485+Bluetooth+Relay

0: None

1: NiMH battery (SLIM version)

2: Lead-acid battery

0: None

0: Standard application

1: Export version

2: Livestock scale without card reader, IP69K

3: Livestock scale with card reader, IP69K

0: Red

1: Green

ID226 ABS plastic dimensions
