Basic Info
  • Factory Location: Ji'an City ,Jiangxi Province China

    Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Asia,Middle East,Africa

  • Monthly Production Capacity: 50000 square meters

    Packaging Information: in box+carton

  • Delivery Lead Time: 7 working days

    Sample Provided: yes

    Payment Terms: T/T

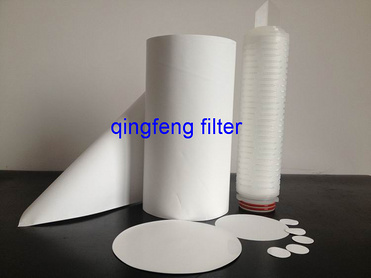

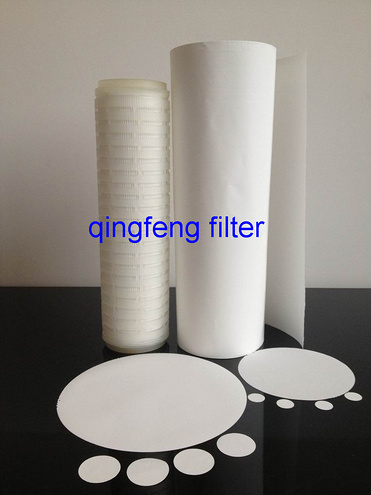

    MCE(CN-CA)Membrane
    Product characteristics:
     1.Even distribution of pore, and rate of interstice reaches as high as 80%
    2.Quick flow speed and high retention rate
    3.Less sorbing and no medium shed off
    4.Lower working pressure
    5.Strengthen membrane is the dissolved CN-CA, transformed in the supporting, spliced the gel, has good intension, strong flexibility, could be made to disc membrane and film membrane.
    Product Applications:
    1.Purification and filtration of liquid and removal of particles
    2.Sterile filtration of culture medium
    3.Detection of special pollutant in the air
    4.Detection of in the Escherichia coli in the waters
    5.Detection of dust
    6.Applications in biology. For instance, the collection and cleaning of cells
    Sterilization Methods:
    Non-sterilization packaging; sterilization under high temperature and pressure (121°C/30min)
    Specifications:
    1,Pore size (um): 0.1, 0.22, 0.45, 0.65,0.8,1.0,1.2.
    2,Configuration size (mm):
           Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ70,Φ80,Φ90,Φ100,Φ142,Φ150,Φ200,Φ300,Φ400
           Rectangle: custom-built
            Rolling film: custom-built,Width : 280/305/315/317/320/326/420mm

    Membrane Hydrophilic Mixed Celluse Ester (MCE)
    Color White
    Filter Surface Plain
    Thickness, μm 90~120
    Width(mm) 280/305/315/317/320/326/420mm
    Pore Size, μm 0.1, 0.22, 0.45, 0.65,0.8,1.0, 1.2um
    Maximum Operating Pressure Forward: 4.2 bar @ 23 ºC; 1.5 bar @ 85  ºC
    pH 3.5~8
    Flow Rate
    0.22 μm ≥ 10 mL/min/cm 2 at 1 bar
    0.45 μm ≥ 20 mL/min/cm 2 at 1 bar
    Integrity Test -water bubble point at 23  degree celsius
    0.22 μm ≥ 3100 mbar
    0.45 μm ≥ 1500 mbar
    Sterilization
    By autoclave at 121 ºC/min or EO



    ABOUT US

        QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an  Jiangxi Province, is a manufacturer in industrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
        Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane.  The products and services we offer will provide world class quality.
