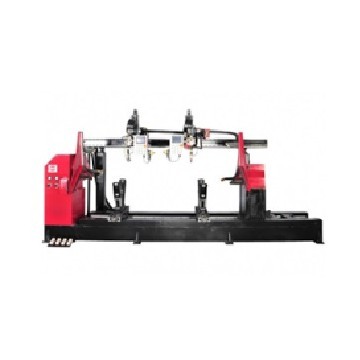

HWH Circumferential Seamer（φ300mm)

The small-sized circumferential welding system is used for welding vessel diameter less than φ1000mm. It is composed by headstock, tailstock, hydraulic pump, beam, pneumatic bracket, welding trolley, slider, arc protection cover, and controller, etc. The work piece is clamped by adjustable chuck on the headstock;  and it can be adjusted to coaxial with the main spindle by means of the ruler on the chuck. The tailstock clamps the work piece by hydraulic pump; When necessary, it can use pneumatic support in the middle of work piece.

 Modular design, allowing customizing the welding system according tocustomer requirement;

 Suitable for barrel and hydro-cylinder circumferential seam welding;

 According to requirement, choose TIG, MIG/MAG welding process, and choose single torch or doubletorches;

 Suitable for various materials, such as carbon steel, stainless steel, titanium alloy and aluminum alloyetc;

 Suitable for pneumatic loading material and hydraulic pushing fixture.
