Category:Pharmaceutical Packaging Machinery > Horizontal Pillow Packaging Machine

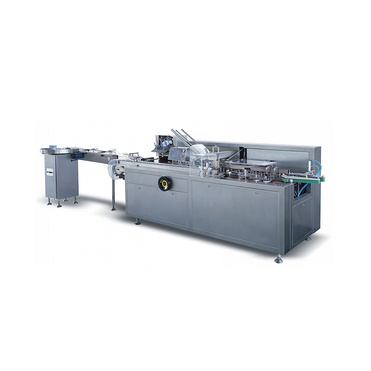

Product Name:Horizontal Packaging Machine Bottle Cartoning Machine
Price(USD):Negotiable
Company:Hangzhou Shengde Machinery Co., Ltd
Factory Location: 88-3-2, Dongyuan Ind. Zone, Wanshi Village, Wanshi Town, Fuyang Dist,HangZhou City,ZheJiang Province
Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Monthly Production Capacity: 30 Sets/month
Packaging Information: Wooden case
Delivery Lead Time: 30-45 days
Sample Provided: no
Payment Terms: L/L
Working Principle
Automatic cartoning machine is a high-tech product integrating light, electricity, gas and machine. It is suitable for automatic packaging boxes for medicine bottles (round, square) cosmetics, food, health products and similar bottled items. The working process is the transfer of medicine bottles or articles; the transfer of drug instructions (automatic folding and folding of 1-4 folds); the carton is automatically opened and transported, and the instructions with the medicine bottles folded together are loaded into the carton Inside; and complete the complicated packaging process such as automatic batch numbering, paper tongue sealing at both ends.
Process |
Parameter |
|
Cartooning speed |
30-120boxs/min |
|
Box |
Quality requirements |
300-350g/㎡ |
Dimension range(L×W×H) |
(65-180)mm×(35-85)mm×(15-50)mm |
|
Synopsis |
Quality |
60-70g/㎡ |
Unfolding range(L×W) |
(80-250)㎜×(90-170)㎜ |
|
Folding range(L×W) |
【1-4】folded |
|
Compressed air |
Working pressure |
≥0.6mpa |
Air pressure |
120-160L/min |
|
Power supply |
220V 50HZ |
|
Main Power |
0.75kw |
|
Dimensions(L×W×H) |
4300㎜×1100㎜×1550㎜ |
|
Weight |
About 1600kg |
