Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Eastern Europe,Australasia,Asia,Middle East,Africa
Sample Provided: no

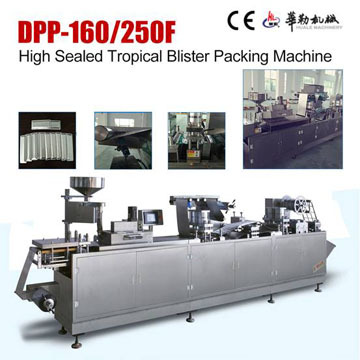

machine is a kind of Environmental Blister Packing Machine designed and produced by our company. The machine can be disassembled by three parts for convenient transportation purpose. It comes with integrating mechanism, electricity and pneumatic system under PLC control and Touch screen operation includes automatic preheating, compressed air blow forming, feeding, detection system, PRC System, first sealing station, batch number embossing, tropical foil forming, second sealing station, perforation station, servo pulling system, cutting station, rejection system and wasted material rewinding station, etc. The machine suitable for blister packing with Alu-Plastic, Alu-Alu and Alu-Plastic-Alu.
Performance and characteristics:
1. Pulling length can be input by touch screen while air frothing forming and cold forming are controlled by encoder.
2. It comes with universal feeder for packaging object feeding; the feeder also can be designed as client’s requirement to irregular shape object.
3. The speed is controlled by inverter which operators can input by touch screen.
4. The machine comes with Automatic Detection system for object absence in blisters by mechanical detecting system or optical sensor or camera system is required by clients.
5. The pulling is controlled by servo motor for ensuring accurate pulling length and saving materials.
6. The heating molds separate automatically when the machine stops, which contributes to protect the packaging material from the heated moulds.
