Basic Info
  • Factory Location: Ruian Zhejiang

    Main Sales Markets: North America,Eastern Europe,Asia,Middle East,Africa

  • Sample Provided: no

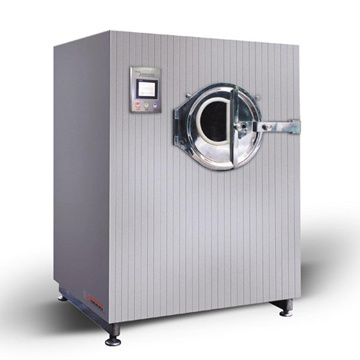

    High-efficiency Poreless Coating Machine(BG-40E) - Zhejiang Jiangnan Pharmaceutical Machinery Co., Ltd.

    Quick Details

    Condition: New
    Place of Origin: Zhejiang,China(Mainland)
    Brand Name: Jiangnan
    Model Number: BGW-40E
    Usage: Pharmaceutical
    Certification: CE, GMP
    Warranty: 1 year
    After-sales Service Provided: Engineersavailable to service machinery overseas

    Packaging & Delivery

    Packaging Details:

    Export-standard and sea-worthy wooden case

    Delivery Detail:

    45 working days

    Specifications

    It is applied for coating traditional Chinese and Western tablets andpills, including the micro pills, granulated pills, small pills,

    Use:

    It's a kind of equipmentintegrating elegance, high efficiency ,safety, easy to clean, which is appliedfor coating traditional Chinese and Western tablets and pills, including themicro pills, granulated pills, small pills, water pills, drip and granulatedpills, with sugar, organic film, water soluble film and programmablePLC(Man-machine Interface),with which its operation process parameters such asnegative pressure and temperature can be automatically controlled. It's easy tooperate, with reasonable and advanced rocess during run of the machine. Mainmachine, cleaning system, hot air cabinet, exhaust cabinet and the thermostaticmixing drum are all made of imported high quality, stainless steel, whichconforms to GMP requirements. This product has passed the certification of EU .

    Basic Working Principle:

    The tablets makecomplicated and constant track movement with easy and smooth running andfrequent exchanging in a clean and closed drum of the film coating machine. Thecoating mediums stirred in the constant temperature controlled stirring drumare sprayed on tablets through the spray gun at the inlet under the action ofperistaltic pump. Meanwhile hot air up to 100,000 level filtration are inhaledthrough the air distributing pipe at the center of the drum and flowed throughtablets around the fan blade. Under the action of air exhaust and negativepressure, hot air are exhausted from the other side of the air distributingpipe and discharged after dust abatement. So these coating mediums on thesurface of tablets get dry quickly, forming a coat of firm, fine and smoothfilm. Automatically controlled by PLC, it is in normal operation.



    Performance andCharacteristics:

    1.                               The drum of the mainmachine has a closed poreless structure and is equipped with a flow-guiding sheet.Tablets can make easy and smooth rotation without fragment and chipped edge inthe drum due to mirror polishing of its wall and flow-guiding sheet, whichgreatly improves the yield. The perforated machine has a wide application,energy and auxiliary saving and easier to clean.

    2.                               During air intake, threelevel filtration involving primary filtration, medium filtration and highfiltration, can reach 100,000 level purification. During air exhaust, dustabatement can reach 99% by adopting a bag-type dust extractor.

    3.                               A specially designed airsource exchange system features exchange of hot air an cold air depending onthe technological requirements, so to say, the fan propeller can be regarded asair inlet or air outlet. The propeller hole bore can meet the user'srequirement from 0.6 to 3.00 mm, which is suitable for all types of tabletcoating.

    4.                               An eye detectingexplosion-proof lamp is equipped in the drum so as to clearly view all materialin run for the convenience of accurately control of coating technological inrange.

    Main Technical Parameter:

                                    Item /Model

    BGW-40E

    Load Capacity

    40kg/batch

    Rotation Speed  of Coating Pan (R/M)

    1-21RPM

    Main machine  Power

    0.75kw

    Dia. of Coating  Pan

    825mm

    Motor Power of  Air Exhaust Cabinet

    2.2kw

    Air Exhaust Fan  Flow

    3517m³/h

    Motor Power of  Hot Air Cabinet

    0.75kw

    Hot Air Fan Flow

    1285m³/h

    Weight of Main  Machine

    550kg

    Clean Air

    Pressure

    ≥0.4Mpa

    Air Consumption

    0.15m³/min
