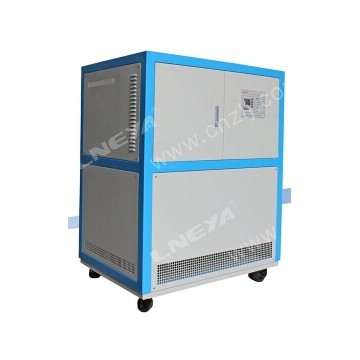

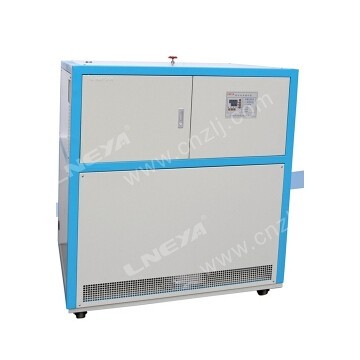

Heating circulator for Industry

Name: Heating circulator for Industry
Availability: heating-circulator-for-industry-38335.html

Category:Laboratory > Other Instrument > Other Laboratory Equipment / Supplies
Product Name:Heating circulator for Industry
Price(USD):0.00
Company:Wuxi Guanya Refrigeration Technology Co., Ltd. (LNEYA)

Send Inquiry

Favorites

Similar Products

Mills

D3 level industrialized rotary cutting microfluidic tubular reactor

Labconco RapidVap Vertex Dry Evaporator

Blood Platelet Storage Refrigeratoe XXB -2

Recirculators and Chillers

High and low temperature refrigeration circulator -80~250 degree

Incubator With Illumination SPX-GB

IKA Variable-Speed Digital Orbital Shakers

bioprocess containers sealing test

Raven Environmental Products Coretaker Sludge Samplers

Basic Info

Factory Location: NO.2 Building,NO.207 Hongyun Road,New District,Wuxi,Jiangsu, China

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Monthly Production Capacity: 100

Contract Manufacturing: CMO

Packaging Information: standard wooden case
Delivery Lead Time: 25 DAYS

Sample Provided: no

Payment Terms: TT

Description:

1. UC series with function of cooling down from high temperature and the temperature range from 300℃ to 50℃.

2. Equipped with heating and cooling system, large heat exchange area, rapid speed of heating-cooling, small demand of heat conducting medium.

3. Can heating-cooling continuously

4. The whole system is closed, there is no oil mist at high temperature, no volatilization of heat conducting medium at high temperature; With function of adjustable internal circulation PT100.

5. The whole system is a closed liquid circulation system with expansion tank, the expansion tank and liquid circulation are thermal insulation, do not participate in liquid circulation, regardless of high or low temperature, the medium in expansion tank is limited to 60℃.

Advantages:

Small space required
Low filling Volume
High Pump Capacity
Rapid & efficient filling of the complete
application with venting
+60 °C max. expansion tank temperature
Simple operation
High level of safety through constant
monitoring

Technical Parameters:

Model		UC-A1520	UC-A2520	UC-A3820	UC-A6020	UC-A9520	UC-A13020	UC-A20020
Temperature range ℃		50℃～200℃
Controller		PID adaptive controller
Temp. Control optional		Heat-conducting medium outlet temp. control
Communication protocol		MODBUS RTU Protocol, RS 485 Interface
Temperature feedback		Heat-conducting medium temperature feedback PT100
Temp. accuracy		±0.5℃	±0.5℃	±1℃	±1℃	±1℃	±1℃	±2℃
Heating power		15kW	25kW	38kW	60kW Divide to two groups heating	95kW Divide to three groups heating	130kW Divide to three groups heating	200kW Divide to four groups heating
		Heater can be divided into groups. When the testing temperature reached to (setting temperature -5℃), it can close the most of heating duty and leave the next group to be PID fuzzy control.
Cooling capacity	300℃
	200℃	15kW	25kW	38kW	60kW	95kW	130kW	200kW
	100℃	12kW	20kW	30kW	48kW	76kW	100kW	160kW
	65℃	5kW	8.5kW	12kW	19kW	30kW	40kW	64kW
		There is a heat exchanger in the system and it needs water to cool. Open the water valve automatically according to demand.
Circulation pump		Max50L/min 2.5BAR	Max110L/min 2.5BAR	Max110L/min 2.5BAR	Max250L/min 2.5BAR	Max250L/min 2.5BAR	Max400L/min 2.5BAR	Max400L/min 2.5BAR
Expansion tank volume		35L	65L	90L	160L	240L	300L	500L
Heater		Orient electric heater
Independent temperature limiter		LNEYA
Cooler		Plate heat exchanger
Operation panel		Display setting temperature and testing temperature; Touch screen display
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Connection size		DN-25	DN25	DN25	DN40	DN40	DN-50	DN-50
Dimension		6006001250	6006001250	12007501100	12007501100	14007501300	14007501300	15008501450
Weight		100kg	130kg	170kg	285kg	318kg	450kg	685kg
Power		AC380V 50HZ 15.7kW (max)	AC380V 50HZ 26.5kW (max)	AC380V 50HZ 39.5k (max)	AC380V 50HZ 63kW (max)	AC380V 50HZ 98kW (max)	AC380V 50HZ 135.5kW (max)	AC380V 50HZ 206kW (max)
Case material		Cold rolled steel painting
Optional		Optional 7-inch color touch screen controller, temperature curve record, data export to excel format.
Optional		SUS 304 SUS 304 case material
Optional power		220V 60HZ three-phase, 440V～480V 60HZ three-phase

UC-A1530	UC-A2530	UC-A3830	UC-A6030
Temperature range ℃		50℃～300℃
Controller		PID adaptive controller
Temp. Control optional		Heat-conducting medium outlet temp. control
Communication protocol		MODBUS RTU Protocol, RS 485 Interface
Temperature feedback		Heat-conducting medium temperature feedback PT100
Temp. accuracy		±0.5℃	±1℃	±1℃	±1℃
Heating power		15kW	25kW	38kW	60kW Divide to two groups heating
		Heater can be divided into groups. When the testing temperature reached to (setting temperature -5℃), it can close the most of heating duty and leave the next group to be PID fuzzy control.
Cooling capacity	300℃	15kW	25kW	38kW	60kW
	200℃	13kW	22kW	32kW	50kW
	100℃	10kW	17kW	27kW	40kW
	65℃	4kW	6kW	11kW	16kW
		There is a heat exchanger in the system and it needs water to cool. Open the water valve automatically according to demand.
Circulation pump		Max50L/min 2.5BAR	Max110L/min 2.5BAR	Max110L/min 2.5BAR	Max250L/min 2.5BAR
Expansion tank volume		50L	80L	120L	220L
Heater		Orient electric heater
Independent temperature limiter		LNEYA
Cooler		Plate heat exchanger
Operation panel		Display setting temperature and testing temperature; Touch screen display
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Connection size		DN-25	DN-25	DN-25	DN-40
Dimension		6006001250	6006001250	12007501100	12007501100
Weight		115kg	155kg	195kg	320kg
Power		AC380V 50HZ 16kW (max)	AC380V 50HZ 26.5kW (max)	AC380V 50HZ 39.5k (max)	AC380V 50HZ 63kW (max)
Case material		Cold rolled steel painting
Optional		Optional 7-inch color touch screen controller, temperature curve record, data export to excel format.
Optional		SUS 304 SUS 304 case material
Optional power		220V 60HZ three-phase, 440V～480V 60HZ three-phase
