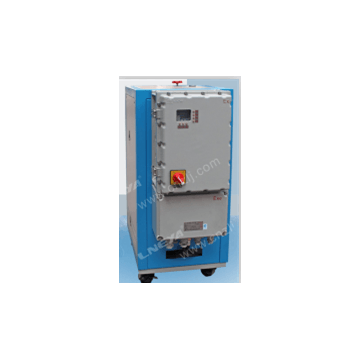

heated circulator machine

Name: heated circulator machine
Availability: heated-circulator-machine-54299.html

Category:Refrigeration Equipment > Other Refrigeration Equipment
Product Name:heated circulator machine
Price(USD):1000.00
Company:Wuxi Guanya Refrigeration Technology Co., Ltd. (LNEYA)

Send Inquiry

Favorites

Similar Products

2015 LNEYA GY-A080N GOOD chamber LNEYA

HR-25N Refrigerated heating circulator

refrigerating treatment equipment GY-A228N

LNEYA Laboratory water bath SUNDI-725WN

New machine for sale Rapid cool-down and heat-up Equipment SUNDI-725WN

Temperature Control results in process improvement for our customer HR-25N

FREEZER WTH GOOD DETAILS

Refrigerated heating circulator SST-15/20

SUNDI-935WN TCU of high and low temperature liquid circulator

temperature control system equipments SUNDI-725WN

Basic Info

Factory Location: No.2 Building,No.207,Hongyun Road,New District in Wuxi,Jiangsu China.Zip code,214115.

Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa
Monthly Production Capacity: 10

Packaging Information: wooden case
Delivery Lead Time: 25

Sample Provided: no

Payment Terms: T/T

Model		UC-1820	UC-5020	UC-A020	UC-3030	UC-5030	UC-A030
Temperature range ℃		50℃~170℃	50℃~200℃	50℃~200℃	50℃~300℃	50℃~300℃	50℃~300℃
Controller		PID adaptive controller
Temp. Control optional		Heat-conducting medium outlet temp. control
Communication protocol		MODBUS RTU Protocol, RS 485 Interface
Temperature feedback		Heat-conducting medium temperature feedback PT100
Temp. accuracy		±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃	±0.5℃
Heating power		2kW	5.5kW	10kW	3kW	5.5kW	10kW
Cooling capacity	300℃				3kW	5.5kW	10kW
	200℃	2kW at 170℃	5.5kW	10kW	2.5kW	5kW	9kW
	100℃	1.3kW	4kW	8kW	1.3kW	4kW	7kW
	65℃	0.6kW	1.8kW	3.4kW	0.6kW	1.8kW	3kW
		There is a heat exchanger in the system, it needs to cool by filling water, open the water valve automatically as request.
Circulation pump		Max10L/min 0.7BAR	Max35L/min 2BAR	Max50L/min 2BAR	Max15L/min 2BAR	Max35L/min 2BAR	Max50L/min 2BAR
Heater		Orient electric heater
Independent Temperature limiter		LNEYA
Cooler		KAORI Plate heat exchanger
Operation panel		Display setting temperature and testing temperature; Touch screen display
Safety protection		Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device, liquid low level protection, high temperature protection and temperature fault protection.
Closed circulation system		The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature, pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.
Connection size		DN15	DN20	DN-20	DN-20 PN-10 Connection flange
Dimension		320420500	500550800	500550800	500550800	6006001250	6006001250
Weight		35kg	78kg	88kg	85kg	95kg	105kg
Power		AC 220V 50HZ 2.2kW (max)	AC 380V 50HZ 5.9kW (max)	AC 380V 50HZ 10.8kW (max)	AC 380V 50HZ 3.2kW (max)	AC 380V 50HZ 5.9kW (max)	AC 380V 50HZ 10.8kW (max)
Case material		Cold rolled steel
Optional		Optional 7-inch color touch screen controller, temperature curve record, data export to excel format.
Optional		SUS304 case material
Optional power		220V 60HZ three-phase, 440V~480V 60HZ three-phase
