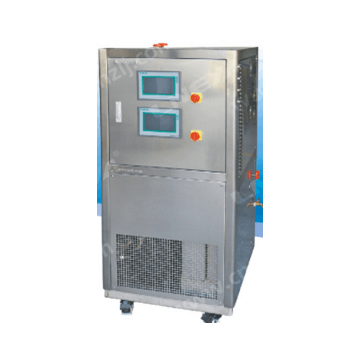

Dynamic Temperature Control systems

Model

SUNDI-225W-2T

SUNDI-225-2T

SUNDI-235W-2T

SUNDI-235-2T

SUNDI-255W-2T

SUNDI-255-2T

SUNDI-275W-2T

SUNDI-275-2T

SUNDI-2A10W-2T

SUNDI-2A10-2T

Temperature range℃

-30℃~180℃

-25℃~200℃

-25℃~200℃

-25℃~200℃

-25℃~200℃

Control Mode

Feed forward PID + Our special dynamic control calculation, PLC controller

Temp. control

Option: process temperature control or jacket oil temperature control

Temp. difference

Set or control the temperature difference between jacket oil and raw material process

Communication protocol

MODBUS RTU Protocol, RS 485 Interface

Temperature feedback

Heat-conducting medium: PT100    Raw material process: PT100 or 4~20mA

Temp. accuracy

±1℃

±1℃

±1℃

±1℃

±1℃

Heating power

2.5kW

3.5kW

5.5kW

7.5kW

10kW

Cooling

capacity

200℃

4kW

6kW

8kW

12kW

17kW

100℃

4kW

6kW

8kW

12kW

17kW

20℃

4kW

6kW

8kW

12kW

17kW

0℃

3kW

5kW

6kW

10kW

15kW

-20℃

2kW

3.2kW

4kW

6kW

7kW

Circulation pump

Max15L/min

1BAR

Max35L/min

2.5BAR

Max35L/min

2.5BAR

Max50L/min

2.5BAR

Max50L/min

2.5BAR

Compressor

Tecumseh

Copeland

Copeland

Copeland

Copeland

Expansion valve

Danfoss

Danfoss

Danfoss

Danfoss

Danfoss

Oil separator

LNEYA

LNEYA

LNEYA

LNEYA

LNEYA

Evaporator

KAORI Plate heat exchanger

Optional

7-inch color touch screen controller, temperature curve record, data export to excel format.

Safety protection

Self-diagnosis function; freezer overload protection; high pressure switch, overload relay, thermal protection device,

liquid low level protection, high temperature protection and temperature fault protection.

Closed
circulation system

The whole system is full closed circulation, there is no oil mist at high temperature and no water vapor at low temperature,

pressure do not rise up when system is running. The system will supplement oil automatically at low temperature.

Refrigerant

R-404A

R-404A

R-404A

R-404A

R-404A

Connection size

DN-20 or

M24*1.5

DN20 or

M30*1.5

DN20 or

M30*1.5

DN20 or

M30*1.5

DN20 or

M30*1.5

Water-cooled type W

(cooling water at 20℃)

1000L/H

1.5bar~4bar

1200L/H

1.5bar~4bar

1400L/H

1.5bar~4bar

1700L/H

1.5bar~4bar

2100L/H

1.5bar~4bar

Dimension

water-cooled

400*600*1250

550*700*1350

550*700*1350

600*700*1550

650*700*1550

air-cooled

450*600*1350

700*700*1450

750*750*1650

1050*750*1300

1150*800*1350

Weight

water-cooled

180kg

245kg

300kg

350kg

400kg

air-cooled

205kg

280kg

340kg

385kg

445kg

Power

AC 220V 50HZ

6.2kW (max)

AC 380V 50HZ

10.5kW (max)

AC 380V 50HZ

15kW (max)

AC 380V 50HZ

21kW (max)

AC 380V 50HZ

28.5kW (max)

Case material

SUS 304

SUS 304

SUS 304

SUS 304

SUS 304

Optional

Optional Ethernet interface, configure the computer operating software

Optional

Optional outside touch screen display controller (separated),the communication line distance is 10 meter.

Optional power

220V 60HZ three-phase, 440V~480V 60HZ three-phase
