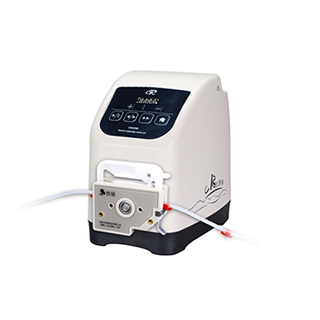

Digital peristaltic pump CM1000

External control function: multiple external control methods to choose communication mode, analog mode, support RS485 / MODBUS communication protocol, analog control (0-5V 0-10V 4-20mA...) foot switch control, provide communication protocol customization Serve.

　　Memory function: After power failure, the data will be stored in time. When the power supply is restored, the pump can memorize the control parameters before the power failure, which is safe and reliable.

　　Calibration function: flow correction, after setting the target flow, input the actual flow value, and the system will automatically perform flow correction to ensure accuracy and suitable for high-precision quantitative fluid transmission.

　　Full speed function: key control full speed operation, used for fast cleaning, filling, emptying, etc.

　　Re-suction function: After the pump is stopped, the reverse operation time can be customized to prevent liquid from dripping. By setting the suction angle and suction speed, high-precision distribution and metering can be realized.

　　Multi-adaptive pump: two-way high-torque low-power motor, can be installed with a variety of pump heads: YZ series, DG series, BZ series, TX315 pump heads; according to the actual application of the customer, multiple pump heads can be connected in series to meet different flow requirements.

Drive model CM1000
Speed ​​range 0.1~100rpm (reversible)
Speed ​​resolution 0.1rpm
Flow rate range 0.0015~380ml/min
Flow error ＜±0.5%
Speed ​​regulation mode: membrane button speed regulation (support external signal control and communication control)
Display mode Four-digit LED displays current speed or current flow
Suction angle 10°~720° (1° step)
Suction speed 10~100rpm
Power supply: AC220V±10% standard) or AC110V±10% (optional)
Power ＜22W
External control function RS485 communication interface, support MODBUS communication protocol, control start/stop/direction/speed (0~5V, 0~10V, 4~20mA, 0~10 kHz optional)
Working environment temperature 0~40℃, relative humidity <80%, no condensation
Drive size 263 × 253 × 353 (mm)
Drive weight 6.05kg
Motor model stepper motor
Protection grade IP31
Working mode Speed ​​mode, flow mode
External control interface DB-15


Applicable pump head and reference flow ml/min
  Pump head (1,2) YZ1515x (1,2) YZ2515x DG1~12 (6) DG1~12 (10) TX315
Hose 13# 14# 19# 16# 25# 17# 18# 15# 24# 0.5*0.8 1*1 2*1 2.4*0.8 3*1 13# 14# 19# 16# 25# 17# 18#
CM1000 (single pump head) 0.0015~380 (single pump head) 0.17~290 0.002~36 0.0015~27 476
