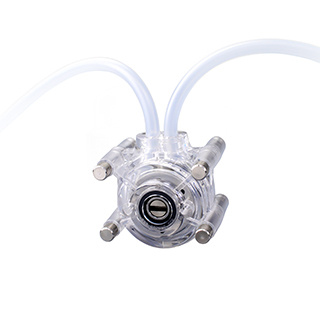

BZ series

·Product material-PC material, good rigidity, high temperature resistance, strong corrosion resistance;

　　·The transparent shell is convenient to observe the operation of the pump.

　　·Model-The pump head model corresponds to the hose specification one-to-one, and the structure is excellent to ensure stable operation.

　　·Structure-The pump head has a compact structure and simple design, which can be used in series;

　　·Transmission-the same transmission accuracy can be achieved in different flow ranges;

　　·Removal-when loading the hose, the pump head needs to be removed from the driver;

　　·Convenient for OEM applications.

　　·Shell material-PC (Polycarbonate)-simple design

　　·Roller-304 stainless steel-corrosion resistance, not easy to rust, high sanitation level

Pump head hose inner diameter* wall thickness speed flow range pressure
(mm) (rpm) (ml/min) (mpa)
BZ25-24 24# 6.4*2.4 0.1-600 0.29-1740 0.21
BZ15-16 16# 3.2*1.6 0.1-600 0.018-492 0.21
BZ15-14 14# 1.6*1.6 0.1-600 0.17-162 0.21
