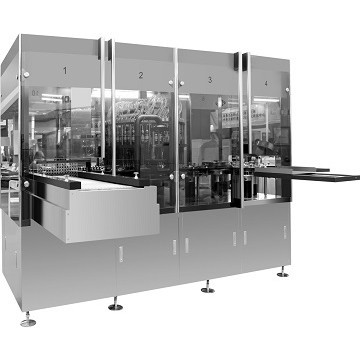

Product Name:AIS Series Light Inspection Machine
Price(USD):0.00
Company:Shanghai Xin Weisheng Pharmaceutical Machinery Co.,Ltd.
Factory Location: Shanghai, China
Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East
Sample Provided: no
Overall
Cooperate with Weiss LLC. and use the latest visual software and visual platform to build the top-class full automatic impurity detecting machine .
Features
◆ Design and manufacturing are carried out in accordance with GMP and GAMP.
◆ Friendly operation interface, convenient maintenance and servicing, easy cleaning.
◆ Molds are simple to replace. Fast replacement can be realized without using any tool.
◆ The DD motor direct driving technology is adopted. With stable tracking, there is no interval error.
◆ The clamp claw design is adopted for clamping and positioning of products, so that there is no dead zone during product inspection.
In addition, the clamping force, clamping speed, rotation speed, rotation number and rotation time can be adjusted precisely.
◆ Nonconforming products can be eliminated by classification. QA personnel are available to carry out data analysis and statistics of production situations.
◆ Standard configuration and optional configuration. Inspection items can be customized flexibly.
◆ The inspection data and inspection process are synchronously recorded, conforming to FDA and GAMP5.
Technical Parameters
| Product Model |
AIS-A60 |
AIS-A90 |
| Applicable specifications for detecting |
Ampoule |
Ampoule |
| Number of bottles holders |
60 |
90 |
|
Number of cameras |
15 |
15 |
| Applicable specifications (ml) |
1,2,5,10,20 |
1,2,5,10,20 |
| Detection speed(pcs/min) | 300-400 |
300-500 |
|
Rotation speed(r/min) |
600-1,200 |
600-1,200 |
| Test items |
Glass fragments, fibres, white particles, hairs, metal particles, liquid fill level, deficiency of bottle body and etc. |
|
| Detecting precision(μ) | >=40 |
>=40 |
|
Power(kw) |
8 |
8.5 |
| Power Supply |
380V/50Hz |
380V/50Hz |
|
Height of workbench(mm) |
900 (± 30) |
900 (± 30) |
| Overall dimensions(LxWxH) (mm) |
3,340×2,290×2,010 |
3,340×2,400×2,010 |
|
Air pressure supply(mpa) |
0.45-0.7 |
0.45-0.7 |
|
Noise(DB) |
< 75 |
< 75 |
| Weight(kg) |
3,500 |
4,000 |
