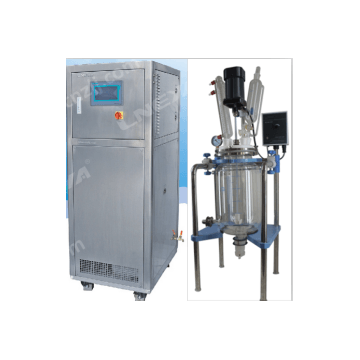

2015 World leader of refrigeration technology Apply to reactor from LNEYA -90 up to 250 degree SUNDI

Model

SUNDI-9A15W

SUNDI-9A25W

SUNDI-9A38W

SUNDI-9A60W

SUNDI-10A15W

SUNDI-10A25W

SUNDI-10A38W

Temperature range ℃

-90℃~250℃

Controller

Feed forward PID +Our special dynamic control calculation, PLC controller

Communication

MODBUS RTU Protocol, RS 485 Interface

Temp. control

Process temperature control mode

Program Editor

20 programs, each program can edit 45 steps.

Temperature feedback

Heat-conducting medium feedback PT100, (oil outlet temperature,

oil inlet temperature and heater temperature) ,Three temperature measuring points.

Process Temperature

feedback

Raw material process feedback PT100 or 4~20mA input (optional)

Process Temp. accuracy

±1℃

±1℃

±1℃

±1℃

±1℃

±1℃

±1℃

Heating power

15kW

25kW

38kW

60kW

15kW

25kW

38kW

Cooling capacity

250℃

15kW

25kW

38kW

60kW

15kW

25kW

38kW

100℃

15kW

25kW

38kW

60kW

15kW

25kW

38kW

20℃

15kW

25kW

38kW

60kW

15kW

25kW

38kW

-20℃

15kW

25kW

38kW

60kW

15kW

25kW

38kW

-40℃

12kW

20kW

31kW

48kW

15kW

25kW

38kW

-60℃

6kW

10kW

16kW

23kW

9kW

15kW

22.8kW

-80℃

2.1kW

3.4kW

5.3kW

11.5kW

5kW

8kW

12.5kW

-90℃

3kW

4.8kW

7.5kW

Circulation pump

Max110L/min

2.5BAR

Max150L/min

2.5BAR

Max250L/min

2.5BAR

Max250L/min

2.5BAR

Max110L/min

2.5BAR

Max150L/min

2.5BAR

Max250L/min

2.5BAR

Compressor

Bock

Bock

Bock

Bock

Bock

Bock

Bock

Evaporator

KAORI Plate heat exchanger

Oil separator

Emerson

Expansion valve

Emerson

Operation panel

Optional 7-inch color touch screen controller, temperature curve record, data export to excel format.

Safety protection

Self-diagnosis function; freezer overload protection; high pressure switch,

overload relay, thermal protection device, liquid low level protection,

high temperature protection and temperature fault protection.

Closed
circulation system

The whole system is full closed circulation, there is no oil mist at high temperature

and no water vapor at low temperature, pressure do not rise up when system is running.

The system will supplement oil automatically at low temperature.

Refrigerant

R-404A R23 R14 mixed Refrigerant

Connection size

DN25 PN10

DN32 PN10

DN40 PN10

DN40 PN10

DN25 PN10

DN32 PN10

DN40 PN10

Water-cooled type W

(cooling water at 25℃)

8m³/h

1.5bar~4bar

12m³/h

1.5bar~4bar

20m³/h

1.5bar~4bar

30m³/h

1.5bar~4bar

12m³/h

1.5bar~4bar

20m³/h

1.5bar~4bar

30m³/h

1.5bar~4bar

water-cooled condenser

Shell and tube exchanger(standard)

Dimension

1500*1000*1750

1800*1200*1750

2050*1450*1750

2300*1450*1850

1800*1200*1750

2250*1450*1750

2300*1450*1850

Weight

780kg

1150kg

1480kg

1950kg

950kg

1300kg

1700kg

Power

AC380V 50HZ

29kW (max)

AC380V 50HZ

47kW (max)

AC380V 50HZ

67kW (max)

AC380V 50HZ

106kW (max)

AC380V 50HZ

34kW (max)

AC380V 50HZ

 53kW (max)

AC380V 50HZ

75kW (max)

Case material

SUS 304

SUS 304

SUS 304

SUS 304

SUS 304

SUS 304

SUS 304

Optional

Optional Ethernet interface, configure the computer operating software

Optional

Water condenser use plate heat exchanger (request for high quality water)

Optional power

440V~480V 60HZ  three-phase
