Basic Info
  • Factory Location: Ji'an City,Jiangxi Province,China

    Main Sales Markets: North America,Central/South America,Western Europe,Eastern Europe,Australasia,Asia,Middle East,Africa

  • Monthly Production Capacity: 100000pcs

    Packaging Information: In box

  • Delivery Lead Time: 10 working days

    Sample Provided: yes

    Payment Terms: T/T

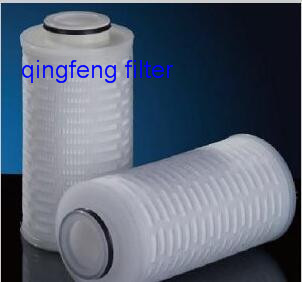

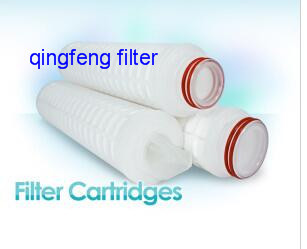

      PTFE Filter Cartridge
    Introduction:

    The filtration media of PTFE micropore filter catridge is hydrophobicity PTFE membrane, it is constructed of two materials PTEE and PP to meet high standards of chemical and pharmaceutical industry. The benefit summary: strong hydrophobicity, high retention rate, super chemical tolerance and thermal stability, good intension, withstand shocks and back pressure. All products have passed 100% integrity accord with FDA and chinese Pharmacopoeia.

    Specifications:

    Filter medium: hydrophobicity PTFE membrane
    Support layer: PP
    Filter cage: PP
    Pore size: 0.1, 0.2, 0.45, 1 (um)
    Length: 5", 10", 20", 30", 40"
    Sealing material: Silastic, NBR, EPDM, Viton
    Airtight method: thermal bonding technique
    Effective filtration area: >=0.64square meter/10"
    Diameter: 68mm
    Working temperature: ≤65ºC
    Max. operating temperature: 90ºC(P≤0.1Mpa)
    Max. bear temperature: 140ºC, 0.27Mpa
    Max. positive pressure: 0.42Mpa (23ºC)
    PH value: 1--14
    Sterilizing: temperature: 121ºC  30min
    Others: special requirement of diameter and end caps can be customized

    Typical Applications:
    Chemical industry; Gas filtration etc.


    Materials of Construction
    Membrane PTFE
    Support and Drainage PP
    Core, Cage PP
    End Caps DOE, SOE (code2, code3, code7, code8)
    O-rings/Gasket Silicone/EPDM/Viton/TEV
    Sealing Technology Thermal Bonding, No Adhesives
    Dimensions
    Diameter Φ68
    Length 5 inch, 10 inch, 20 inch, 30 inch, 40 inch
    Filtration Area, ft 2
    ≥ 6.4 per 10-inch element
    Pore Size, μm
    0.01 (for gas),0.1, 0.2, 0.45, 1 (um)
    Maximum Differential Pressure
    Forward: 4.2 bar @ 23 C
    Nitrogen Flow Rate & Pressure Drop , per 10-inch cartridge
    ≥ 60 m 3 /h at 0.1 bar with 0 bar outlet pressure
    ≥ 120 m 3 /h at 0.1 bar with 2 bar outlet pressure
    Integrity Test - at 23 C
    Bubble point ≥ 1100 mbar with 60/40% IPA/water
    HydroCorr (water intrusion test) ≤ 0.75mL/min per 10-inch cartridge with water at 2620mbar



    ABOUT US:

        QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an  Jiangxi Province, is a manufacturer in industrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, filter cartridges, filter housing.
        Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane.  The products and services we offer will provide world class quality.
